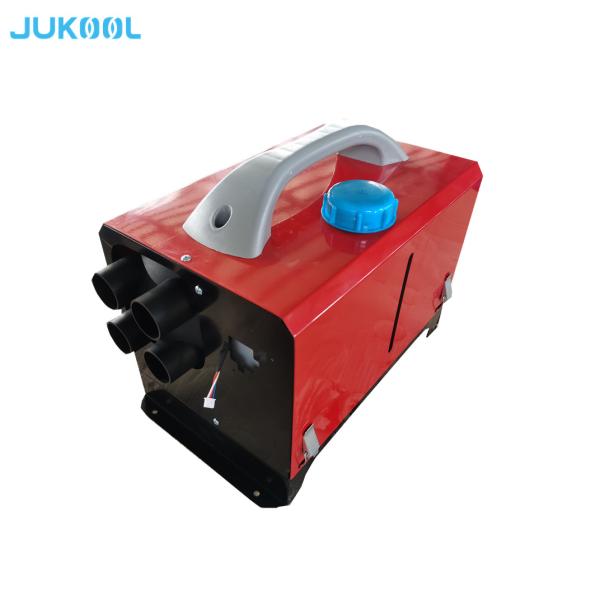

Product Name :Portable All In One Unit Type Diesel Oil 2-5KW Truck
Parking Heater Unit For Vehicle Cab
Brief Introduction :
The parking heater is an in-vehicle heating device which is
independent from the vehicle engine. It has its own fuel
pipe,electric circle,combustion heating and control panel, etc. When the vehicle is parking, driver can use this parking heater to
warm ip the cold environment of cab without starting the engine.It can be installed under truck seat or any other place .It can work under high altitude mountain environment
Integrated type has all in one unit, oil tank and control panel all
together, easy install.
Main Parameters :
| Heating power | 2000-5000W |
| Fuel | Diesel |
| Oil tank | 10L |
| Rated Voltage | 12V | 24V |
| Working power | 20-50W |
| Rated power | 15-90W |
| Min voltage | 9W | 17W |
| Max voltage | 19W | 32W |
| Fuel consumption (1/h) | 0,12-0.43 | 0.12-0.5 |
| Working Temperature | -40℃ ~ 76℃ |
| Inside noise | less than 78dBA |
| Overheat protection | 180 ℃ |
Main Features :
- Preheating the cabin air very quickly after hot start
- Keep heating 48hours when vehicle parking
- Lower power consumption - the ideal heating method for longtime
parking
- Lower fuel consumption (0.1 liters of oil per hour)
- Can set the cabin temperature
- The temperature in the cabin is steplessly adjustable
- Reduce noise by controlling blower speed
- Optional internal or external installation
- Real-time function monitoring and diagnostic system
- Maintenance free, easy maintenance
Button and display function:
Applications :
Parking heater can be used in any vehicle cab with diesel fuel .
Shipping Packing :
We pack the parking heater with carbon box then on pallet
For shipment we can arrange complete supply chain, start from our
factory to customer's factory. and also we support customer to do
custom clearance and local transportation

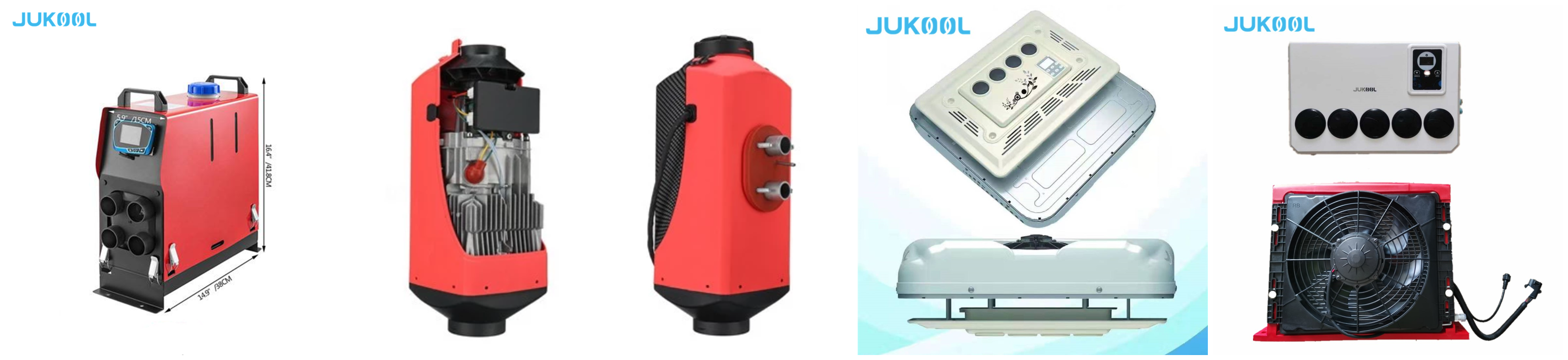

Our parking heater and parking air conditioners
we have split type parking heater, integrated type and split type
parking air conditioner also.
Attention of installation and use
1. the air inlet must not be covered by anything
2. the air inlet must avoid dust inhaled
3. the exhaust outlet must be installed outside of the vehicle to
prevent the exhaust gas from entering the driver's cab
through ventilation device, warm air inlet or window
4. use national standard diesel oil, poor quality diesel oil easy
to form carbon deposit on the surface of the burner
5. replace the atomization net once a year
6. empty the oil tank if not going to use it for a long time , for
example during summer season.
Our Service :
- support customer with formal technical suggestions
- response in 4 hours
- support customer to solve problem referring to our product
- follow custom for installation and after-sales service until no
problem left
- support customer to solve any problem related to our products for
life time
